Heavy Duty Steel Storage Shelf Wire Mesh Decking

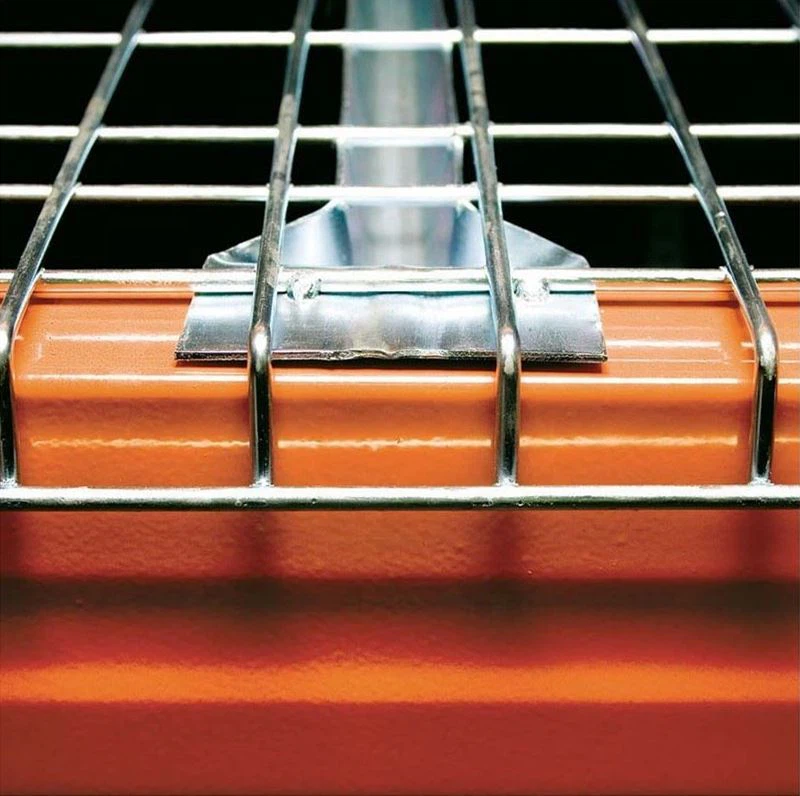

Wire mesh deck is commonly used as a safety measure on selective pallet rack to prevent pallets or the products stored on them from falling through the rack structure. It is wildly used in warehouse, as an acompany of rack. The outside finish of wire mesh can be powder coated, galvanized, and also spray paint.

Wire mesh decking was made of round steel of dia.4mm, dia.5mm or dia.6mm. Matched with reinforcements to enhance the loading capacity. Reinforcements are the main place to take loads. According to the goods size and shape, the mesh can be made at 100mmx50mm, 100mmx25mm, 50mmx50mm and 50mmx25mm. The most used one is 100mm x 50mm. The width of wire mesh decking generally vary from 800mm to 1350mm. The depth is decided by the racking frame's depth. If use the strongest materials, each decking can load as much as 1500kg.

For a quotation, you only need to tell us your racking frame's depth, beam's length and each level's loading Kapazität. Anhand dieser Zahlen können wir Ihnen schnell ein Angebot machen.

Produktname	Schwerlast-Lagerregal aus Stahldraht
Material	Stahldraht
Ladekapazität	500-2000 kg
Maschendrahtgröße	36''46'',42''46'',48''46'',36''58'',42''58'',48''58''
Gittergröße	5050 mm, 50100 mm, 100100 mm
Durchmesser	3,0mm, 4,0mm, 5,0mm
Oberflächenbehandlung	Galvanisch verzinkt (dreiwertiges Chrom)
MOQ	10 Stk
Zahlung	LC, TT, Western Union, Paypal sind verfügbar
Verpackungsdetails	Seetaugliche Standardexportverpackung
